Rock preparation for microscopic observations
The samples should have an appropriate dimension (letter A - figure 4). Large samples must be cutted with the saw illustrated in figure 1.

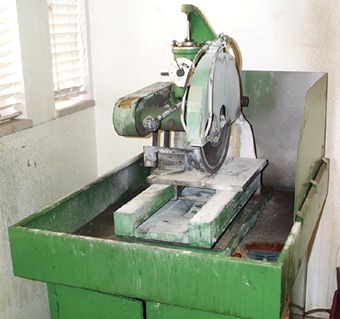

Figure 1- Saw for large samples.

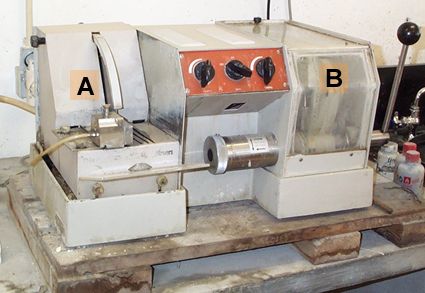

Figure 2 - A- Saw ; B - Wear out disc.

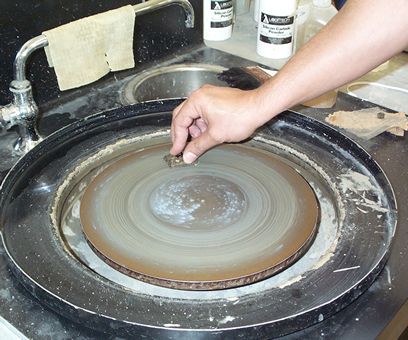

Figure 3 - Polishing.
 Click over the sample to see a detail.

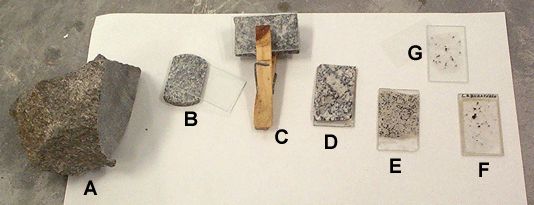

Figure 4 - All the intermediate phases between a hand specimen and the thin section.
